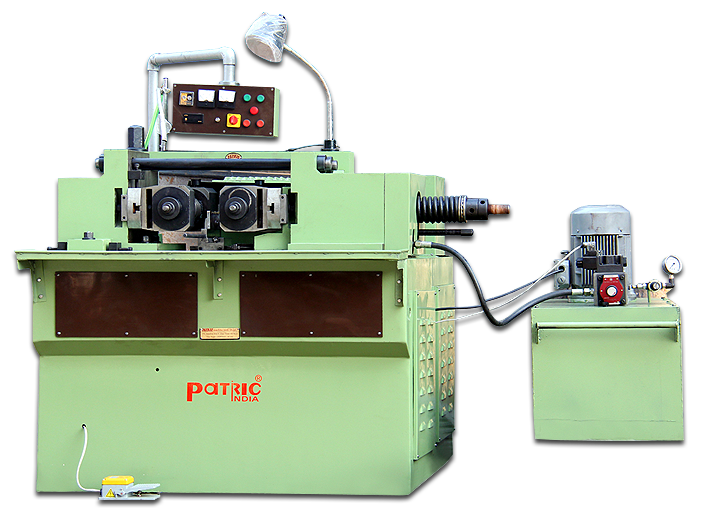

Hydraulic Thread Rolling Machine
| Model | PMT-25 |
PMT-25 Heavy |
Thread Bar |
PMT-40 |
PMT-50 |
PMT-80 |
| Max Pitch can be called | 2.5 mm |
3 mm |
1.75 mm |
3.5 mm |
4 mm |
5.5 mm |
| Max. dia can be rolled infeed | 25 mm |
25 mm |
---- |
40 mm |
50 mm |
80 mm |
| Though Feed | 12 mm |
16 mm |
12 mm |
25 mm |
30 mm |
60 mm |
| Max. Outer dia. T. Rolls | 120 mm |
160 mm |
160 mm |
180 mm |
200 mm |
200 mm |
| Maximum Rolling Force | 8 Tons |
8 Tons |
8 Tons |
12 Tons |
15 Tons |
24 Tons |
| Max. Rolling Length infeed | 80 mm |
80 mm |
80 mm |
125 mm |
150 mm |
180 mm |
| Spindle Dia (Bore Dia) | 40 mm |
54 mm |
54 mm |
54 mm |
69.85 mm |
69.85 mm |
| Max. Width T.rolls | 80 mm |
80 mm |
80 mm |
125 mm |
150 mm |
180 mm |
| Though Feed | Unlimited |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
| For Roll Spindles | 3hp/1440rpm |
3hp/1440rpm |
5hp/1440rpm |
5hp/1440rpm |
7.5hp/1440rpm |
10hp/1440rpm |
| For hyd. Pump | 3hp/1440rpm |
3hp/1440rpm |
3hp/1440rpm |
3hp/1440rpm |
5hp/1440rpm |
5hp/1440rpm |
| For Coolant Pump | 0.25hp/3000rpm |
0.25hp/3000rpm |
0.25hp/3000rpm |
0.25hp/3000rpm |
0.25hp/3000rpm |
0.25hp/3000rpm |
